Metal seated valve ball and seat is the critical parts of metal seated ball valves. It is designed for extreme high pressure, temperature and abrasive conditions, such as cutting off or connecting solid granules, melted slurry, coal power, scalding cinder, steam water or other liquid etc. Therefore it has the feature of anti-static construction, extra tough coating, full bore and reduced bore, fire safe feature complying API607, and reliable sealing performance.
Metal seated valve ball and seat is the critical parts of metal seated ball valves. It is designed for extreme high pressure, temperature and abrasive conditions, such as cutting off or connecting solid granules, melted slurry, coal power, scalding cinder, steam water or other liquid etc. Therefore it has the feature of anti-static construction, extra tough coating, full bore and reduced bore, fire safe feature complying API607, and reliable sealing performance.

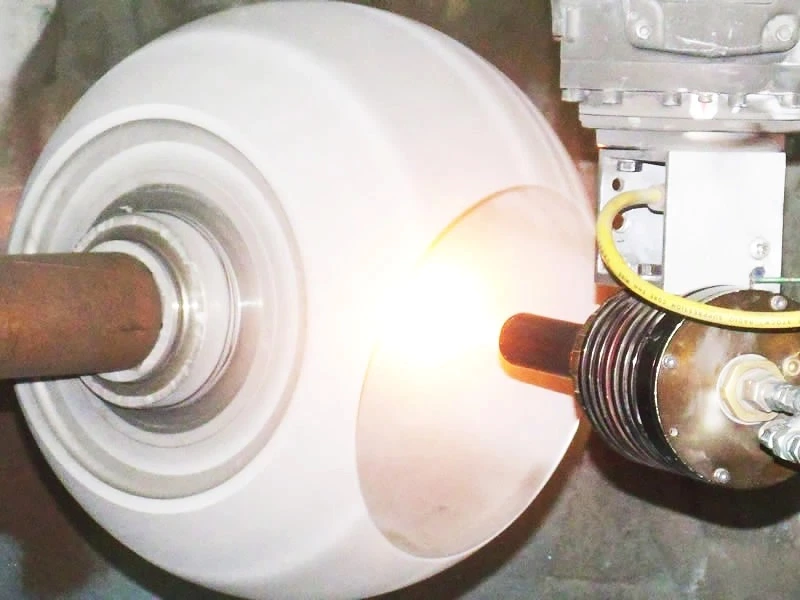

Metal Seat and Ball are made from base metals coated usually with hard chrome, tungsten carbide, stellite and Ni60. We have both thermal spray coating and cold spray coating available such as Laser Cladding, HVOF (High Velocity Oxy Flame) Coating, Oxy-acetylene flame spray, and plasma Spray process.

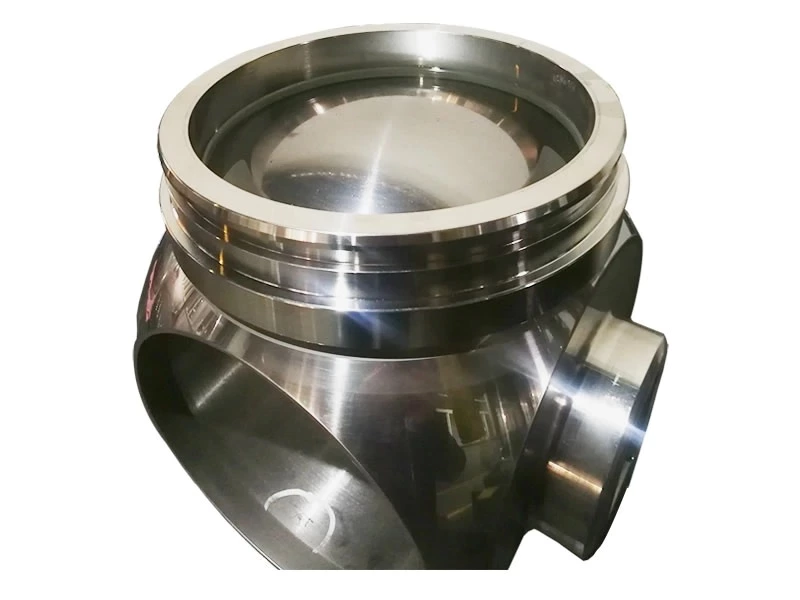

Over the years, we have developed a unique ball lapping technology for the coated ball and seat. Through simultaneous same and different direction of rotation, the ball and the seat result in perfect roundness and fitness, achieving “Zero Leakage”
Based on API 6D /ASME B16.34 and Customer requirements
-50.8 to 1022°F (-46 to 550°C)
NPS 1-24 (DN 25-600)
ASME 150 - ASME 2500
As per API 6D /ASME B16.10
RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
SW, Socket Welded as per B16.11
Hub connection
Forged or casting two-piece and three-piece
Metal seated with Hardfacing on ball and seats
Carbon Steel
Stainless Steel
Low-Temperature Carbon Steel
Duplex, Super Duplex, Inconel
Manual: wrench or Gear with padlocking
Actuated: Pneumatic/ Hydraulic/Electric
Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607 /API 6FA/ISO 10497
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
