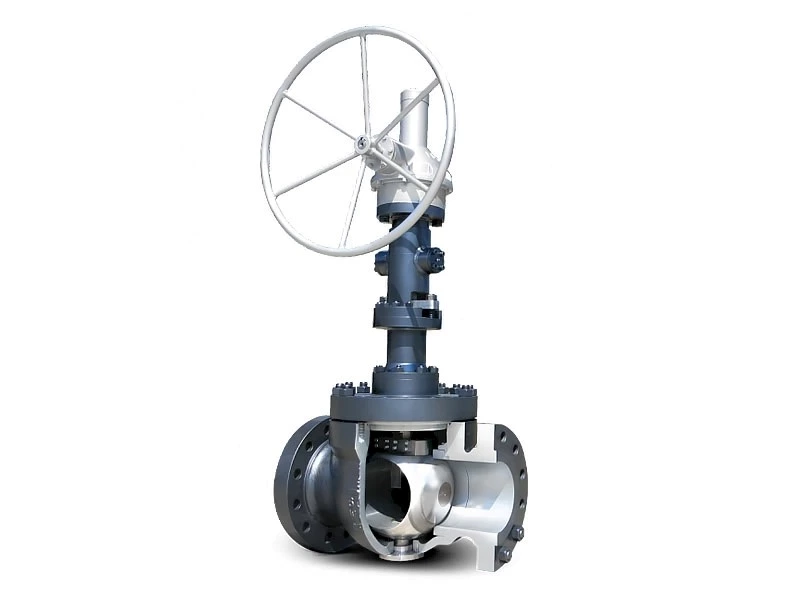

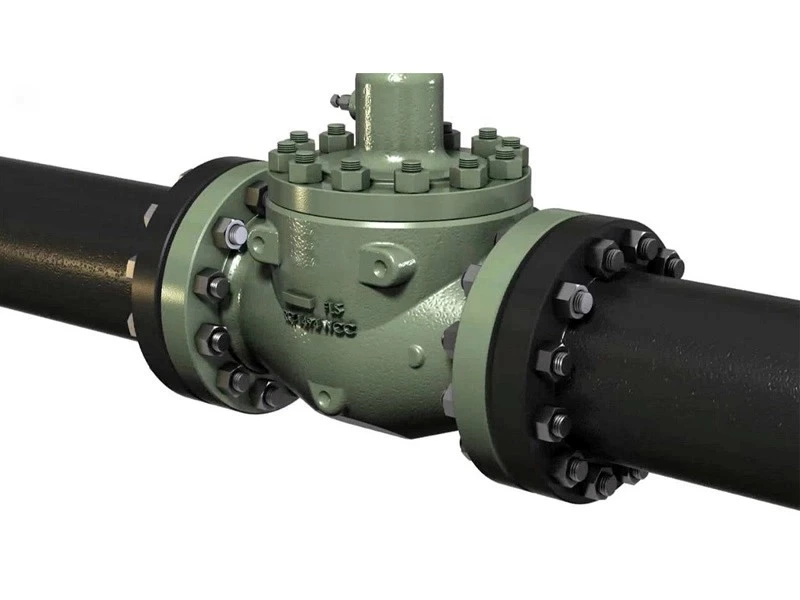

Orbit Ball Valve with its unique design especially such as the opening process no friction character and turn-off zero leakage. Performance is particularly suitable for special requirements for various extremely harsh working conditions, all-metal structure design, fire proof design, can adapt to low temperatures ranges between -196°C or (-320°F), and high temperature could be up to 600°C or (1112°F) operating temperature, also can adapt to the impurity medium(including sand, short fibers) condition requirements. Particularly worth pointing out is that we are fully according to the American association of corrosion factory NACE standard requirements in design, material selection meets the requirements in sulfide environment of sulfide stress cracking resistance.
Orbit Ball Valve with its unique design especially such as the opening process no friction character and turn-off zero leakage. Performance is particularly suitable for special requirements for various extremely harsh working conditions, all-metal structure design, fire proof design, can adapt to low temperatures ranges between -196°C or (-320°F), and high temperature could be up to 600°C or (1112°F) operating temperature, also can adapt to the impurity medium(including sand, short fibers) condition requirements. Particularly worth pointing out is that we are fully according to the American association of corrosion factory NACE standard requirements in design, material selection meets the requirements in sulfide environment of sulfide stress cracking resistance.
Based on API 6D, API 600, ASME B16.34, ISO 14313, ISO 10423, ISO 17292
-320 to 1112°F (-196 to 600°C)
NPS 2-24 (DN 2-600)
ASME 150 - ASME 2500
As per API 6D / ASME B16.10
RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
Carbon Steel，Stainless Steel，Low-Temperature Carbon Steel，Duplex, Super Duplex, Inconel
Forged or cast one-piece
Single-seat Design

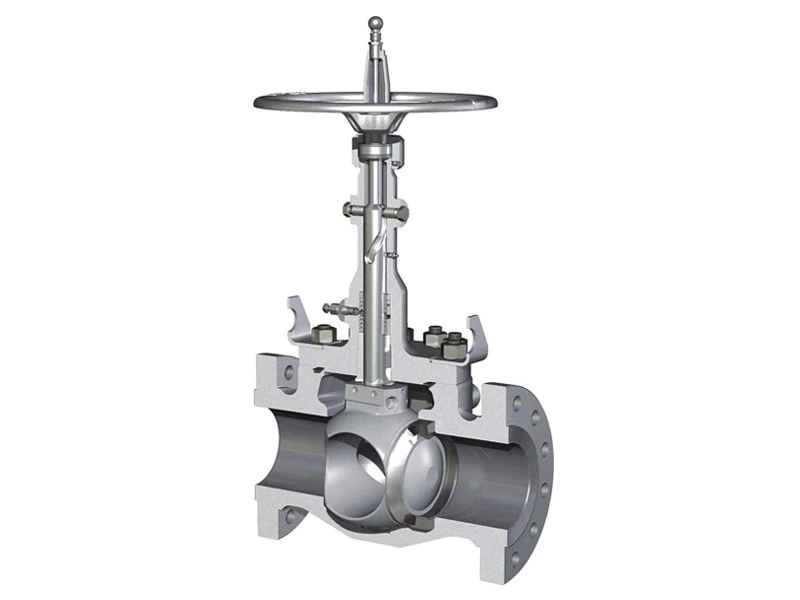

The single, stationary seat in the valve seals in both directions and avoids the problems of trapped pressure between seals.
No Rubbing Between Sealing Surfaces
its unique structure of the stem and valve seat in the valve open-close process without friction, which could extend valve life sealing is more reliable.
Ball &Seat Self-cleaning Function
Design of opening of the media along the 360 direction of the ball and the valve seat surface has a self-cleaning function.
Handwheel, Gear box or Actuator with position indicator and locking device
Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607 /API 6FA/ISO 10497
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
