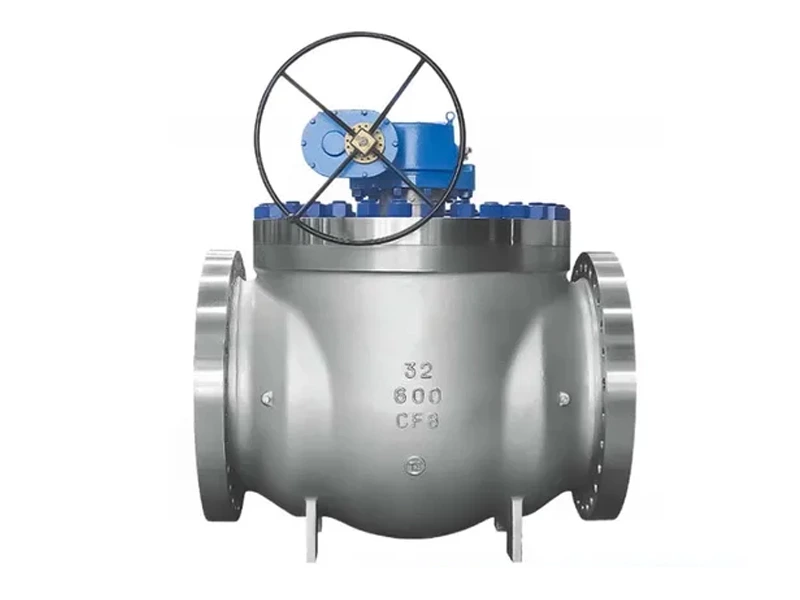

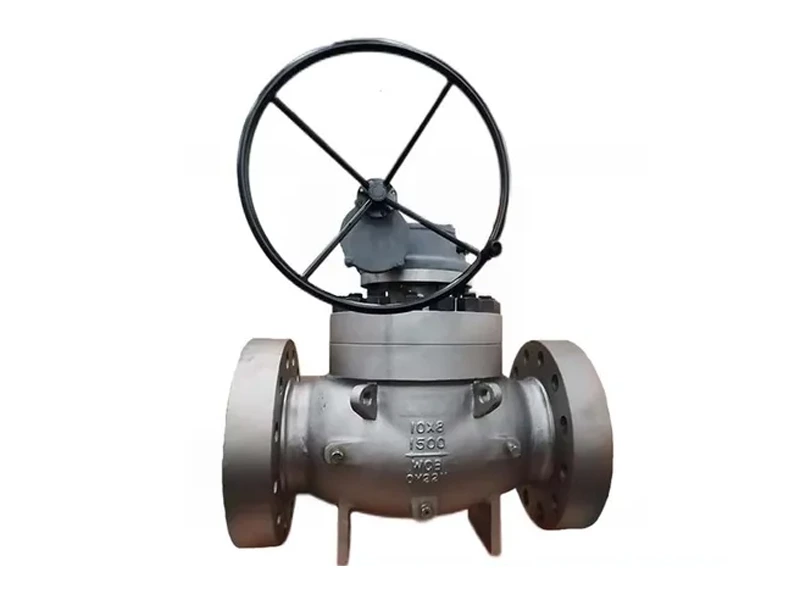

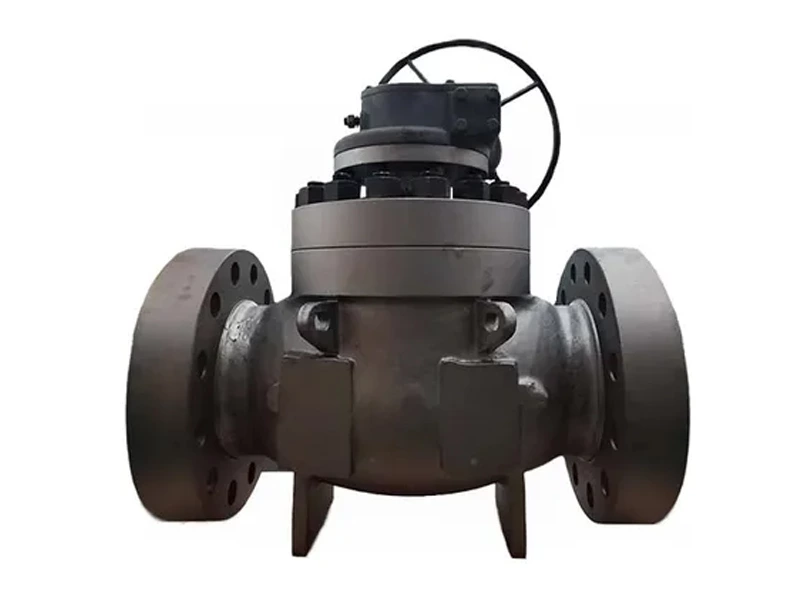

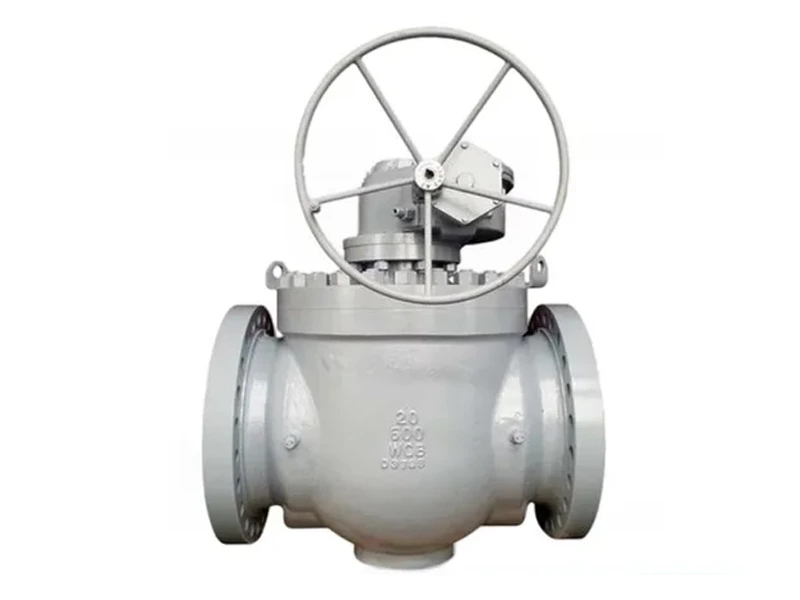

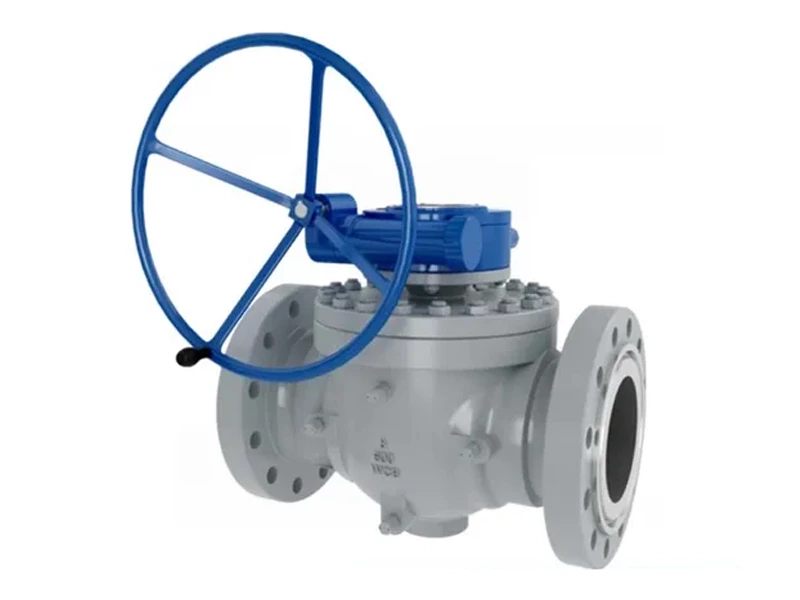

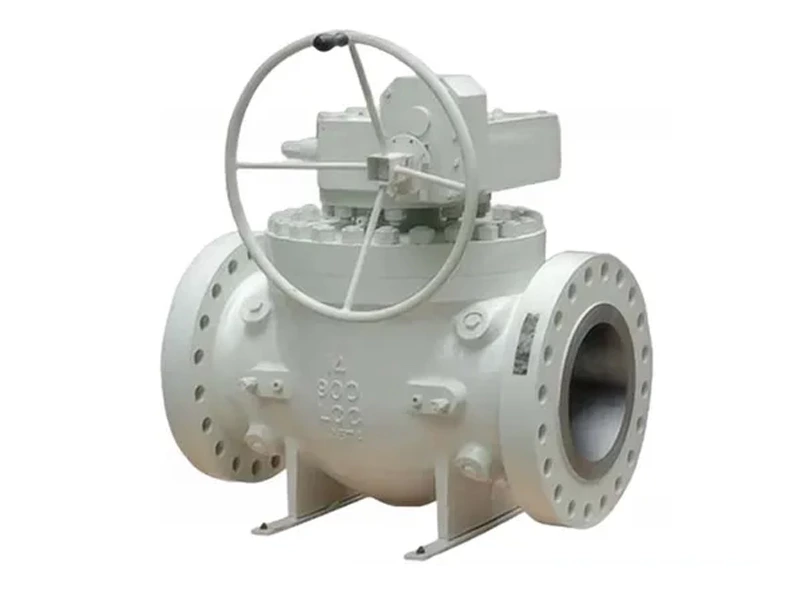

Top-entry trunnion ball valves are the perfect solution for both offshore and onshore systems. Convenience of operation and maintenance are essential features of our design simplifying in-line disassembly for trim inspection or internal repairs even where space is restrictive. Our valves also offer excellent corrosion resistance and superior sealing performance at both high and low pressures. Valves are manufactured in a single forged or cast piece and configured with two independent seats for a bi-directional sealing and are manufactured in accordance with customer specific requirements and international standards.
Top-entry trunnion ball valves are the perfect solution for both offshore and onshore systems. Convenience of operation and maintenance are essential features of our design simplifying in-line disassembly for trim inspection or internal repairs even where space is restrictive. Our valves also offer excellent corrosion resistance and superior sealing performance at both high and low pressures. Valves are manufactured in a single forged or cast piece and configured with two independent seats for a bi-directional sealing and are manufactured in accordance with customer specific requirements and international standards.
API 6D / ASME B16.34 and customer requirements
-150 to 662°F (-101 to 350°C)
NPS 2 - 24 (DN 50-600)
ASME 150-ASME 2500
As per API 6D /ASME B16.10
RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
Forged or cast one-piece
Soft or metal seated with hard facing on ball and seats
Self relieving seats
Double piston seats
Double block and bleed design (DBB)
Secondary seals in pure Graphite
Anti-static device
Anti-blowout stem
O-ring/lip seal configuration
Emergency sealant injection on seats and stem available
Low fugitive emission stem packing available
CRA overlay on all dynamic sealing areas or on all wetted parts available
Stem extension for underground installations available
Manual: wrench or Gear with padlocking
Actuated: Pneumatic/ Hydraulic/Electric
Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607 /API 6FA/ ISO 10497
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
