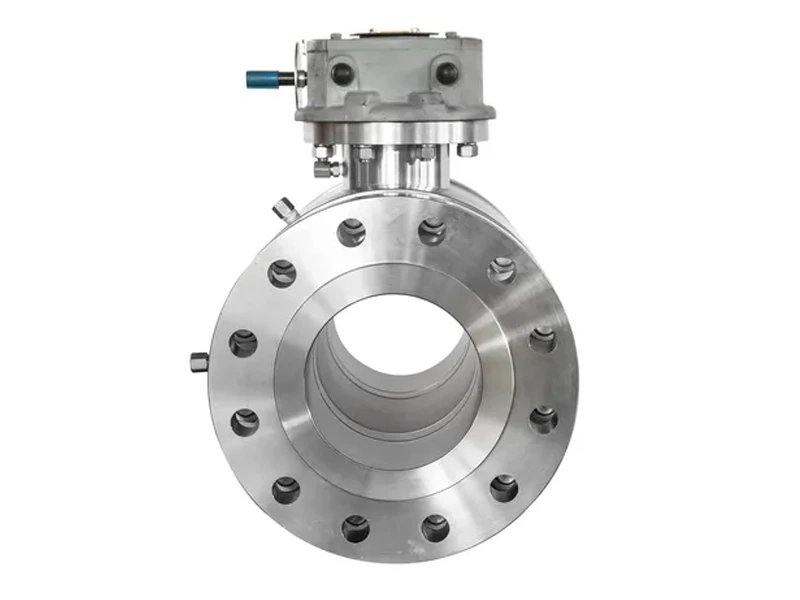

Side-entry ball valves are manufactured in accordance with API 6D/API 6A standards. The complete range of forged valves is designed in two or three bolted pieces with a solid double trunnion configuration and two independent seats for an easy bidirectional sealing, to ensure the greatest level of tightness and reliability under high pressure and temperature conditions in all critical isolation services.
Materials selection is fully customizable to meet the customer's project specifications and several unique features are available to offer an enhanced technical solution suitable to aggressive offshore environments and corrosive and abrasive fluids.
Side-entry ball valves are manufactured in accordance with API 6D/API 6A standards. The complete range of forged valves is designed in two or three bolted pieces with a solid double trunnion configuration and two independent seats for an easy bidirectional sealing, to ensure the greatest level of tightness and reliability under high pressure and temperature conditions in all critical isolation services.
Materials selection is fully customizable to meet the customer's project specifications and several unique features are available to offer an enhanced technical solution suitable to aggressive offshore environments and corrosive and abrasive fluids.
Based on API 6D/API 6A/ASME B16.34 and Customer requirements
-150 to 662°F (-101 to 350°C)
NPS 1-56 (DN 25-1400)
ASME 150 - ASME 2500 / API 1500PSI -API 10000PSI
As per API 6D/API 6A /ASME B16.10
RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
SW, Socket Welded as per B16.11
Hub connection
Carbon Steel
Stainless Steel
Low-Temperature Carbon Steel
Duplex, Super Duplex, Inconel
Forged and casting bolted two-piece and three-piece
Soft or metal seated with Hard facing on ball and seats
Double piston seats
Combination seats
Double block and bleed design (DBB)
Secondary seals in pure Graphite
Anti-Static Device
Anti Blow out stem
Emergency sealant injection on seats and stem available
Low fugitive emission stem packing available
O-ring /Lip seals and Graphite configuration
CRA overlay on all dynamic sealing areas or on all wetted parts available
Extended bonnet for low & high temperature available
Manual: wrench or Gear with padlocking
Actuated: Pneumatic/ Hydraulic/Electric
Compliance with API 6D/ API 6A & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607 /API6FA/ISO10497
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
