Summary Specification : Three way / Four way ball valve , Nominal Diameter : DN15~50 for NPT/SW ENDS TYPE , DN50 TO DN450 FOR FLANGED TYPE; Nominal Pressure 1.6Mpa~6.4Mpa/1000WOG (2.5MPa) for NPT/SW type /150LB~1500LB for flanged type ; Structure Type Ball Type ,Connection T / L TYPE
Summary Specification : Three way / Four way ball valve , Nominal Diameter : DN15~50 for NPT/SW ENDS TYPE , DN50 TO DN450 FOR FLANGED TYPE; Nominal Pressure 1.6Mpa~6.4Mpa/1000WOG (2.5MPa) for NPT/SW type /150LB~1500LB for flanged type ; Structure Type Ball Type ,Connection T / L TYPE
| Specification | |
| Valve Type | Three way ball valve, Four way ball valve |
| Nominal Diameter | DN15~50 for NPT/SW ENDS TYPE , DN50 TO DN450 FOR FLANGED TYPE |
| Nominal Pressure | 1.6Mpa~6.4Mpa/1000WOG (2.5MPa) for NPT/SW type AND 150LB~1500LB for flanged type |
| Structure Type | Ball Type |
| Connection Type | Flange, Thread |
| Working Temperature | ≤350ºC (-20~232ºC~350ºC) |

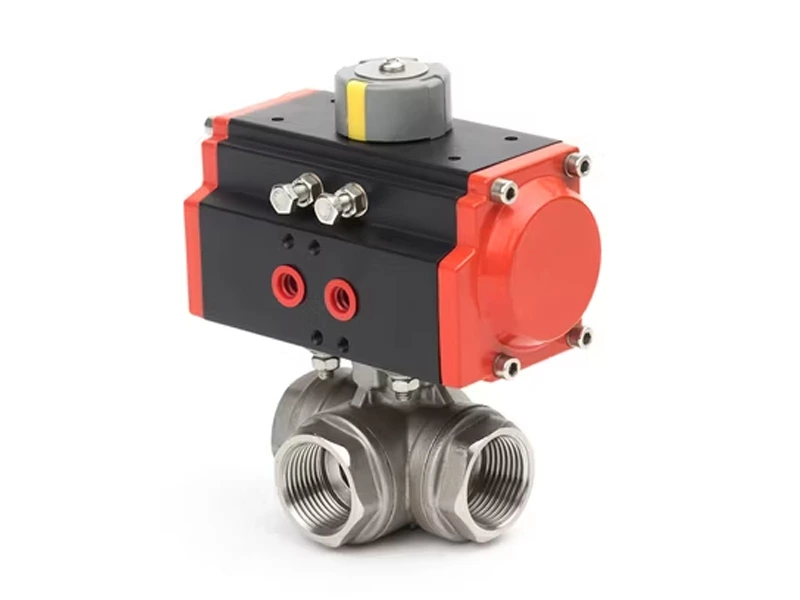

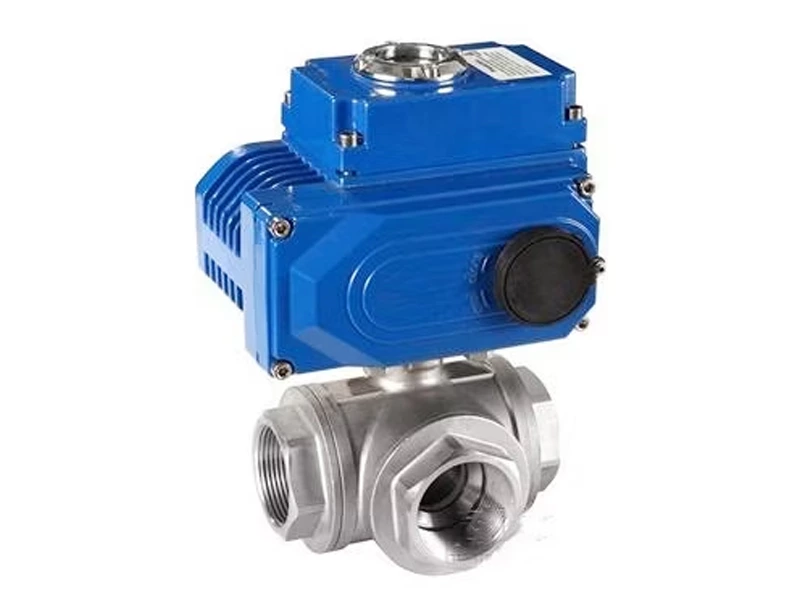

| Action Manner | Manual, electric, pneumatic |
| Body Material | Cast steel, stainless steel |
| Design Standard | Chinese Standard; ANSI; JIS; DIN |
| Application Media | Water, oil, gas, liquid |
| Spring Type | G.NPT.BSPT.BSP.DIN259/2999 |
| Q14F Threaded three way stainless steel ball valve suitable medium | Water, oil, gas and some corrosive liquids (W. O. G) |
| Material of Main Parts | ||
| No | Parts Name | Material |
| 1 | Body | CARBON STEEL/STAINLESS STEEL |
| 2 | Bonnet | CARBON STEEL/STAINLESS STEEL |
| 3 | Ball | CARBON STEEL/STAINLESS STEEL |
| 4 | Seat | PTFE/PEEK/NYLON |
| 5 | Stem | CARBON STEEL/STAINLESS STEEL |
| 6 | Packing | PTFE/GRAPHITE |
| 7 | Gasket | PTFE |
| 8 | Gland nut | CARBON STEEL/STAINLESS STEEL |
| 9 | Handle | CARBON STEEL/STAINLESS STEEL |
| 10 | Direction board | Aluminum |
| 11 | Nut | CARBON STEEL/STAINLESS STEEL |
| 12 | Locking devices | CARBON STEEL/STAINLESS STEEL |
| 13 | Leather sheath | Plastic |
| Design Features |
| 1. Double 0-ring third weight stem seal design. |
| 2. Valve stem explosion-proof device design. |
| 3. Large laminates limit deformation space design. |

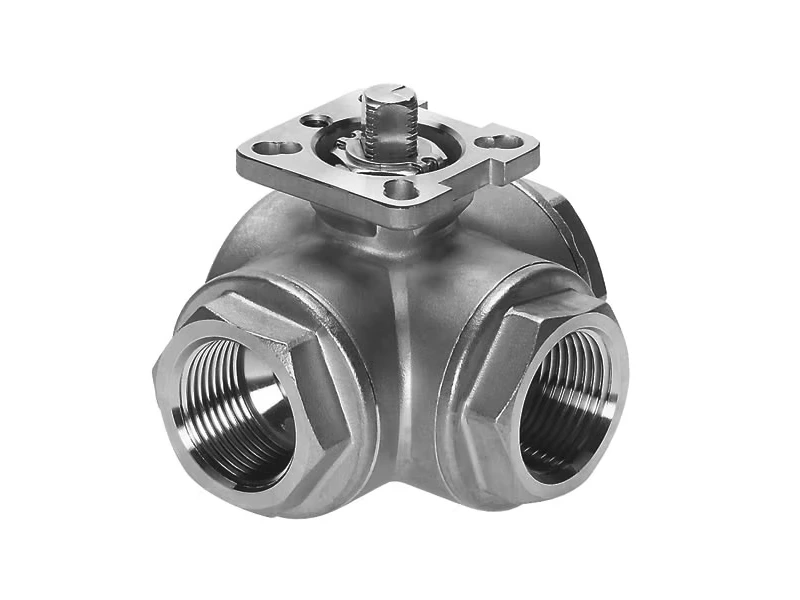

| 4. Its platform design conforms to IS05211 standard. |
| 5. Multilayer packing TA-luft VDI2400 stem seal zero leakage design. |
| 6. Double butterfly shaped shrapnel assembly abusive design. |
| 7. Seat fire resistant design. |
| 8. Design of the device for the invisible positioning lock. |
| 9. Anti-static device design. |
| Product Features |
| 1. Three-way ball valve any pass can be used as the entrance without leakage, and can be made into L-type or T-type channel according to the working condition, make the installation more convenient. |
| 2. Inspection and maintenance can be carried out without removing the whole valve body after the pressure relief of the system. |
| 3.Three-way ball valve is divided into L-type and T-type, in the flow direction of the medium to switch, can make the two mutually perpendicular channels connected; T - type is suitable for sub - flow, confluence or flow direction switching. |
| 4.The two seat sealing three-way ball valve structure is compact, beautiful appearance, good sealing performance, it can achieve the medium flow of the pipeline to switch, but also can make each other vertical two channels connected or closed |
| 5.1 Flange end: GB/T9113, ASME B16.5, JIS B2212, DIN 2543-2545 5.2 Explosion proof shaft/flow reduction 5.3 Precision casting 5.4 Management ISO 5211 platform 5.5 Padlock device 5.6 Four seats 5.7 L port or T ports used 360 ° rotating handles |
Main Dimensions----High Platform Three-way Ball Valve (L-type)
| SIZE | D | L | H | D1 | B | W1 | W2 | H | WT(g) |
| 1/2″ | 12.7 | 64 | 53 | 97 | 32.0 | 22.4 | 35.0 | 10-24UNC | 530 |
| 3/4″ | 16.0 | 76 | 63 | 126 | 38.0 | 22.4 | 35.0 | 10-24UNC | 700 |
| 1″ | 20.0 | 87 | 66 | 126 | 43.5 | 22.4 | 35.0 | 10-24UNC | 980 |
| 11/4″ | 25.0 | 96 | 81 | 145 | 48.0 | 22.4 | 35.0 | 10-24UNC | 1950 |
| 11/2″ | 32.0 | 114 | 83 | 145 | 57.0 | 25.4 | 38.1 | 1/4-20UNC | 2950 |
| 2″ | 38.1 | 142 | 96 | 204 | 71.0 | 25.4 | 38.1 | 1/4-20UNC | 4450 |
Main Dimensions-----High Platform Three-way Ball Valve (T-type)
| SIZE | D | L | H | D1 | B | F | G | W1 | W2 | H | WT(g) |
| 1/2″ | 12.7 | 75 | 59 | 126 | 71.0 | 335 | 375 | 22.4 | 35.0 | 10-24UNC | 550 |
| 3/4″ | 16 | 85 | 64 | 126 | 81.5 | 390 | 425 | 22.4 | 35.0 | 10-24UNC | 725 |
| 1″ | 20 | 100 | 80 | 145 | 102.0 | 505 | 515 | 22.4 | 35.0 | 10-24UNC | 1000 |
| 11/4″ | 25 | 115 | 90 | 145 | 108.5 | 510 | 575 | 25.4 | 38.1 | 10-24UNC | 2000 |
| 11/2″ | 32 | 125 | 96 | 204 | 121.0 | 580 | 630 | 25.4 | 38.1 | 1/4-20UNC | 3000 |
| 2″ | 38.1 | 148 | 106 | 204 | 138.5 | 655 | 730 | 25.4 | 38.1 | 1/4-20UNC | 4650 |
Main dimensions for Flanged ends type ,pls contact our sales team to get more information.
